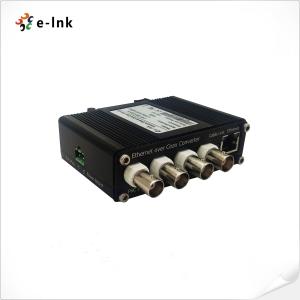

300m Fiber Optic Accessories 10 100Base TX Ethernet Switch With PoC

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-DEC140P-R

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD85/PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Accessories Standard Carton Packaging

Maximum Distance : Cat5UTP up to 100m

Ethernet Connector : 1 x RJ45

Coaxial Connector : 4 BNC (female)

Distance : Up to 300m

Input Power : 48-57VDC (2 pin connector)

Weight : 0.5kg

Contact Now

300m Fiber Optic Accessories 10 100Base TX Ethernet Switch With PoC

DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC

Accessories Advantages:

Ethernet Extension: Security Link over Coax
Support DIN-Rail mount installation
Connecting up to 4 x LNK-DEC110P and IP Cameras
1000Mbps Full-duplex communication
Power over Coaxial
Data Rate up to (per port): 40Mbps (Downlink)/ 10Mbps (Uplink)
Max. Distance: 300m over Coax (RG59/U)
Auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables
External 48~57VDC power input
Support DIN-Rail mount installation

Technical Indexes

Ethernet
Standards IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
Cabling 100Base-TX: Cat5 or above
Maximum Distance Cat5UTP up to 100m
Connector 1 x RJ45
Coaxial
Cabling Coaxial Cable (75 ohm)
Connector 4 BNC (female)
Distance 300m
Electrical and Mechanical
Input Power 48-57VDC (2 pin connector)
Power Consumption 10W Max. w/o PoC
250W Max. w/PoC
Dimensions (W x D x H) 95 × 67 × 30 mm
Weight 0.5 Kg
Casing

Aluminum case

Overview

LNK-DEC140P Series DIN-Rail EOC Receiver works with the LNK-DEC110P-T (transmitter) to provide Ethernet Extension

of 4 channel 10/100Base-TX over Coaxial cable to 1-port 10/100Mbps Ethernet. The maximum coaxial cable distance is 800m.

The product support PoC, hence, no power point is required for the transmitter side and the connected IP camera

if the camera support Power over Ethernet (PoE). The product is good for retrofit of analogue

system by using the existing cable infrastructure.

300m Fiber Optic Accessories 10 100Base TX Ethernet Switch With PoC

Ordering Information

Model Description
LNK-DEC140P-R DIN-Rail Receiver of 4-port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC
