PoE Media Converter 2 Port 10/100/1000T 30W to 1-Port 100/1000X SFP 48V DC Output

Name: PoE Media Converter 2 Port 101001000T 30W to 1Port 1001000X SFP 48V DC Output
Brand: E-link
Price: 1 USD

China PoE Media Converter 2 Port 10/100/1000T 30W to 1-Port 100/1000X SFP 48V DC Output factory

Brand Name : E-link

Model Number : LNK-IMC1200GP-SFP

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : Fiber Media Converter Standard Export Package

Keywords : 2 Port Industrial Media Converter

Data Rate : 10/100/1000 Mbps

Ethernet Port : 2 Port 10/100/1000Mbps 802.3at PoE

Optical Port : 1 Port 100/1000X SFP

PoE Power Output : 15.4W/30W/60W/90W

Casing : IP40 Aluminum Case

Mounting Options : DIN Rail / Wall mount

Dimensions : 95 x 70 x 30 mm (WxDxH)

Contact Now

Fiber Media Converter 2 Port 10/100/1000Mbps 30W PoE

Industrial Unmanaged 1-Port 100/1000X SFP to 2-Port 10/100/1000T 802.3at PoE

Industrial Fiber Media Converter 2 Port PoE Advantages

► Converts 2x10/100/100Base-TX to 100/1000Base-X SFP

► Supports IEEE802.3at Power over Ethernet (POE+)

► Supports Full/Half duplex

► Supports External SFP

► Supports Auto-MDI/MDIX

► Support DIN-Rail and Wall-mount installation

► Extensive LED indicators for network diagnostics

PoE Media Converter 2-port Gigabit Technical Indexes

Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type	Store-and-Forward
Forward Filter Rate	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Connector	2-Port 10/100/1000T RJ45
Optical Port	1-Port SFP 1000Base-X or 100Base-FX (auto detection)
Input Power	12~48VDC, 4-pin terminal block
Output Power	48VDC
Power Consumption	65W Max.
Weight	0.25Kg
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
MTBF	> 200,000 hrs
Package Content	LNK-IMC1200GP-SFP Media Converter x 1 Quick Start Guide x 1 L-shaped wall mount bracket x 1

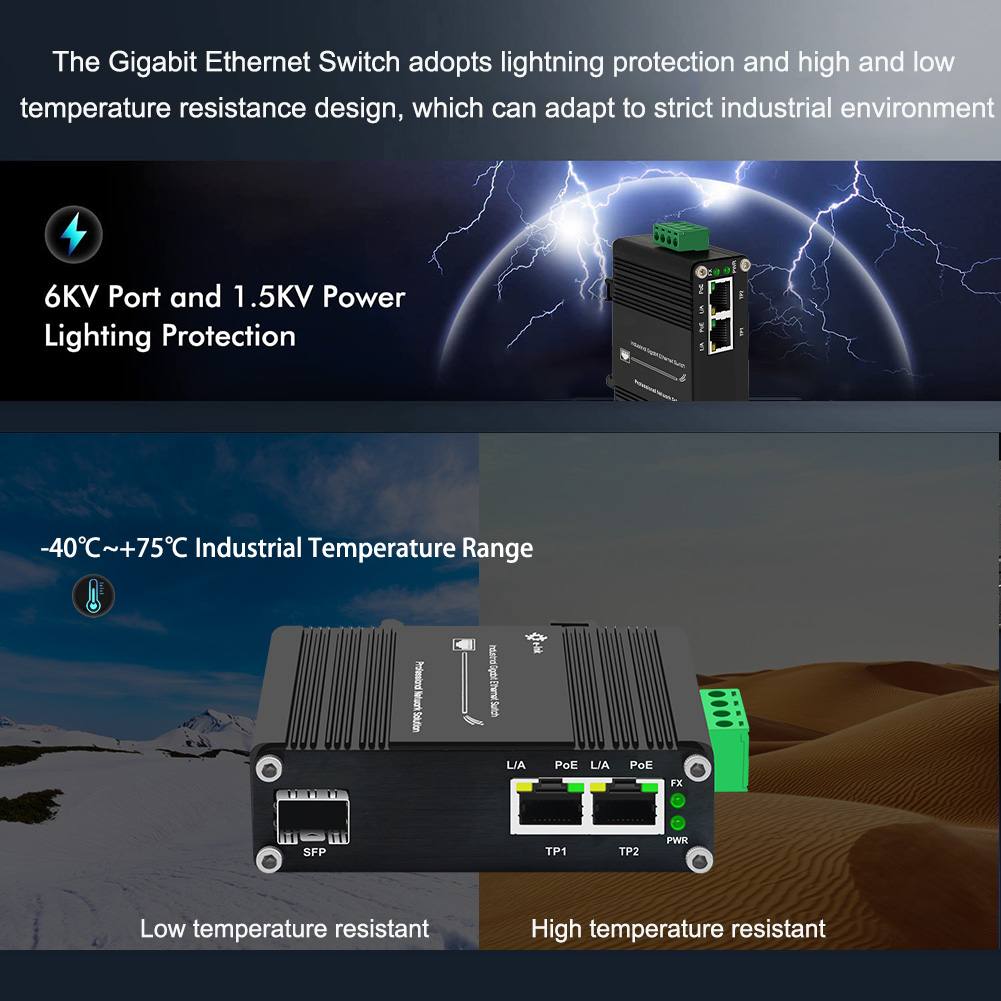

Din Rail 30W PoE Media Converter Overview

LNK-IMC1200GP-SFP is a DIN rail type media converter that supports external SFP modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE 802.3af/at standard. It is a hardened grade product whose operating temperature range is -40℃ to 75℃. LNK-IMC1200GP-SFP supports 2x10/100/1000Base-T with 30W PoE+ and 100/1000Base-X Dual Rate SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. LNK-IMC1200GP-SFP is the same at the transmitter or receiver sides. Users can use 100/1000Mbps Dual Rate SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

PoE Media Converter 2 Port 10/100/1000T 30W to 1-Port 100/1000X SFP 48V DC Output

Gigabit Fiber Media Converter 48VDC Output Ordering Information

Model	Description
LNK-IMC1200GP-SFP	Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	►75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
