Product Description:

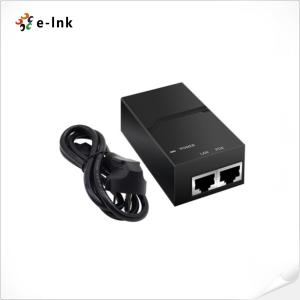

LNK-PSE4824G 24W – 48V Gigabit PoE Injector
The LNK-PSE4824G is a long-distance driving, fast network performing, strong PoE Output midspan. It is a single port indoor PoE injector which provides 24W of power, making it ideal to power devices such as 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals.
Plug and-play Installation
The LNK-PSE4824G is easy and cost effective to implement using existing Ethernet infrastructure, providing the assurance of a future proof network. With the plug and-play installation, users can easily power and manage the devices with its PoE function, without needing to install additional power cables.
Features:
This power supply is designed to provide 48VDC @ 0.5A for various applications. The operating temperature is from -10C to +50 deg C while the storage temperature is -20C to +70 deg C. The operating humidity is between 5% to 95% non-condensing. The input voltage varies from 90-260VAC and the input current is 0.3A @ 120VAC, and 0.2A @230VAC. The power supply is highly efficient, with the minimum efficiency of 70%. The output ripple is 1% max, and the switching frequency is set at 200kHz. The line regulation is +/- 0.5% and the load regulation is +/- 1%. Additionally, this power supply has a feature that can remotely power equipments through CAT 5/6 cable up to 100m (328ft). Over current, over voltage, and short circuit protection are also included.
Technical Parameters:
| Ethernet |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet |
| Processing Type: | Forward |
| Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T: Cat5 or above |
| Maximum Distance: | PoE (24W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Connector: | LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320-C15 |
| Environmental |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Input Voltage Range: | 90-260VAC @ 47-63Hz. |
| Output Voltage: | DC 48-50V, 0.5A |
| Power Consumption: | 24 watts max. |
| PoE (Power over Ethernet) |
| Port: | RJ45 |
| Power Pin Assignment | Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
| PoE Power Output | DC 48V-50V/324-watt PoE via 2-pairs |
| LED Indicators |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (W×D×H): | 84 x 43 x 31mm |
| Weight: | 0.25Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop |
Applications:
Support and Services:
PoE Injector Adapter technical support and services:
- 24/7 customer service and technical support
- Product installation and setup assistance
- Replacement of defective parts
- Troubleshooting and diagnostics
- Software updates and upgrades
- Hardware repairs and maintenance
- Product training and education
Packing and Shipping:
Packaging and Shipping for PoE Injector Adapter
The PoE Injector Adapter is carefully packaged and shipped with the highest standards of safety and security to ensure delivery in perfect condition.
The PoE Injector Adapter is packaged in a sturdy cardboard box and includes an insert containing installation instructions, warranty information, and product specifications. To protect the contents of the box, it is then sealed with a tamper-proof plastic wrap.
The box is then shipped with a reliable courier service, usually within 1-2 business days. Tracking information is provided to ensure that the package is delivered to its destination safely and on time.
Ordering Information:
| Model | Description |
| LNK-PSE4824G | 10/100/1000Mbps 48V 24W POE Injector with Power Cord |
