12LC Quad Din-rail Mount Fiber Patch Panel

Name: 12LC Quad Dinrail Mount Fiber Patch Panel
Brand: E-link
Price: 1 USD

China 12LC Quad Din-rail Mount Fiber Patch Panel factory

Brand Name : E-link

Model Number : LNK-FSB-D-12LC

Certification : ISO9001, CE, ROHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000/Month

Delivery Time : 3-5 working days

Packaging Details : Mount Fiber Patch Panel Standard Carton Packaging

Cable Entries Port : 2 Port Cable

Installation : Din Rail Mounting

Casing : Al (Aluminum)

LC-Quad : Max. 12pcs

LCrain relief : PG gland

Weight : 0.6KG

Contact Now

12LC Quad Din-rail Mount Fiber Patch Panel

Model :LNK-FSB-D-12LC

12LC Quad Din-rail Mount Fiber Patch Panel

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination or fusion

splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum with natural finishes

making it light weight and compact in size.

Features designed to save space especially when mounted within enclosures or cabinet with other din rail mount

equipment. The patch panel can be loaded with 12 LC Quad adapters.

Features

► Up to 12 ports LC-Quad adapters

► Din-rail mounting

► Space-saving installation

► IP20 protection

► 2x rear entries (PG 11 cable gland)

► Grey color (RAL 7035)

► -40°C to 80°C (-40°F to 176°F) operating temperature

► Other configurations on demand

Technical Indexes

General
Application	Harsh environment,
Design	Splice distributor
Color	Gray
Dimensions (LxWxH)	131.50 x 131.70 x 52.60 mm (5.177 x 5.185 x 2.071 inch)
Weight	0.6KG
Mounting Options	DIN-Rail
Connections/Interfaces
Cable access/outlet	From top or bottom, straight or inclined
Equipped Adapters
LC-Quad	Max. 12pcs
Mechanical
LCrain relief	PG gland
Materials
Casing	Al (Aluminum)

Ordering Information

Model	Description
LNK-FSB-D-12LC	12LC Quad DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs LC/PC SM Quad adapters

Product Tags:

12LC Fiber Patch Panel

Quad Din-rail Mount Fiber Patch Panel

12LC Din-rail Mount Fiber Patch Panel

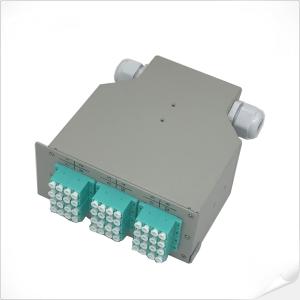

12LC Quad Din-rail Mount Fiber Patch Panel Images
