Product Description:

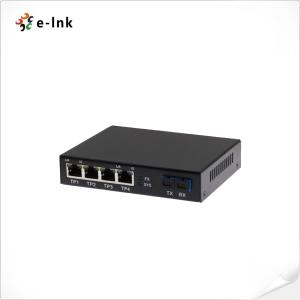

E-link LNK-LED104G fiber converter is an excellent solution for converting optical signals to electrical signals or vice versa in a cost-effective manner. It allows you to connect the sending card to the LED display with ease.
This converter provides full-duplex, efficient, and stable data transmission that is not easily interfered with, making it perfect for long-distance transmission. With advanced technology, its performance is top-notch, and it ensures that you are able to enjoy seamless connectivity always.
Designed with practicality in mind, this converter is easy to install and comes with simplified operation procedures, making it perfect for both beginners and professionals alike. E-link LNK-LED104G fiber converter is compactly built and can be carried around without any hassles.
Features:
The device offers 1 x 10G SC duplex optical port with single mode and 10KM distance capabilities. Additionally, it is equipped with 4 x Gigabit Ethernet ports.
It also supports RJ45 ports with speeds of 10/100/1000M and Full Duplex/Half Duplex auto-negotiation. However, it should be noted that the device does not support VLAN.
Technical Parameters:
Connector Type
This device is equipped with 1 x 10G SC duplex port and 4 x Gigabit Ethernet RJ45 ports.
Distance
The device supports single mode fiber up to 10km.
Resolution
The device supports a resolution of 1920*1080 at 60Hz.
Compatible Brand
It is compatible with NovaStar and Colorlight brands.
Connection Method
This device must be used in pairs, with each port connected accordingly. For example, Device A's Port-1 must be linked to Device B's Port-1.
Power Supply
The device can receive a power input of 5-12V DC.
Working Environment
The operating temperature of this device is 0℃ ~ 55℃ and the storage temperature is -40℃ ~ 75℃. The operating humidity must be below max 90% and storage humidity must be below max 95%, both non-condensing.
MTBF
This device has a mean time between failures of 100,000 hours.
Dimensions and Weight
The device measures 130 x 105 x 28mm and weighs 350g.
Applications:
Support and Services:
The Ethernet Switch product technical support and services include:
- Assistance with installation, configuration, and troubleshooting of the product
- Access to software updates and upgrades
- Technical documentation and user manuals
- Product warranty and repair services
- Access to online resources such as knowledge base articles and forums
- Technical support via phone, email, or chat
Packing and Shipping:
Product Packaging:
Our Ethernet Switch product comes in a sturdy cardboard box with the product name and image printed on the front. Inside the box, the product is securely packed with foam padding to prevent any damage during transportation. The package includes:
- The Ethernet Switch unit
- Power cord
- User manual and installation guide
Shipping:
We offer free shipping for our Ethernet Switch product within the United States. Shipping takes 3-5 business days and is handled by our trusted shipping partners. Once your order is shipped, we will provide you with a tracking number so you can monitor your shipment's progress.
Ordering Information:
| Model | Description |
| LNK-LED104G | LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km. |
