Mini Bi-directional HD/3G-SDI To Fiber Converter

Name: Mini Bidirectional HD3GSDI To Fiber Converter
Brand: E-link
Price: 1 USD

China Mini Bi-directional HD/3G-SDI To Fiber Converter factory

Brand Name : E-link

Model Number : LNK-M3G-BI20 Series

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1pair

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 5-12 working days

Packaging Details : SDI Fiber Converter Standard Export Package

Key word : SDI Fiber Converter

Working Temperature : -20℃～+70℃

Casing : Aluminum Case

Weight : 0.8KG/pair

Mounting Options : Desktop

Dimensions (LxWxH) : 80 x 40 x 20 mm

Contact Now

SDI Fiber Converter Advantages:

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

Technical Indexes

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	0-20Km (Other distance available)
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 3.2Gb/s
Electrical
Power adaptor	DC 5~12V
Power consumption	<5W

Overview

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via

fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

Mini Bi-directional HD/3G-SDI To Fiber Converter

Ordering information

Model	Description
LNK-M3G-BIMM	Mini-type Bi-directional 3G-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-M3G-BI20	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-M3G-BI40	Mini-type Bi-directional 3G-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Model	Description
LN K-MHD-BIMM	Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-BI20	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-BI40	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

Product Tags:

Mini HD/3G-SDI to Fiber Converter

Bi-directional HD/3G-SDI to Fiber Converter

3G-SDI to Fiber Converter

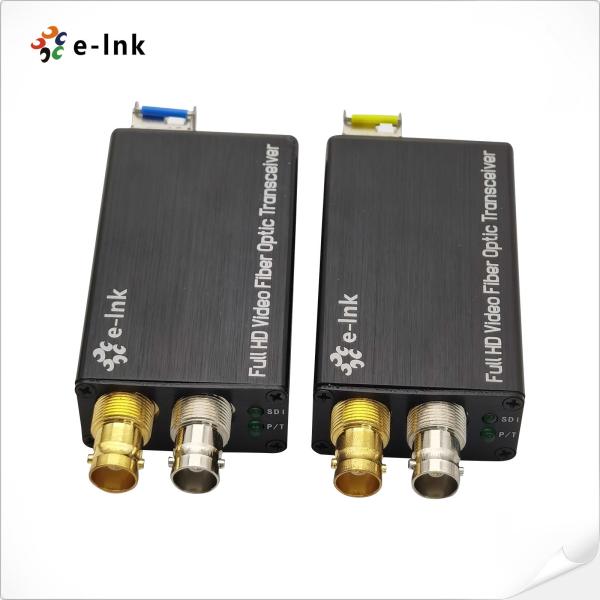

Mini Bi-directional HD/3G-SDI To Fiber Converter Images
