Passive PoE Kit ( Passive PoE Splitter + Passive PoE Injector )

Name: Passive PoE Kit Passive PoE Splitter Passive PoE Injector
Brand: E-link
Price: 1 USD

China Passive PoE Kit ( Passive PoE Splitter + Passive PoE Injector ) factory

Brand Name : E-link

Model Number : LNK-POE-2P

Certification : ISO9001 / CE / RoHS / FCC

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 3-5 working days

Packaging Details : Fiber Optic Accessories Standard Carton Packaging

Case of materiall : PVC

Network cable : T IA/EIA 568 Cat. 5

Ethernet data rate : 10/100 Mbps

Operating Temperature : 0°C - 40°C (32°F - 104°F)

Dimensions (WxDxH) : 210 x 19 x 19 mm

Weight : 55g

Contact Now

Passive PoE Kit ( Passive PoE Splitter + Passive PoE Injector )

Fiber Optic Accessories Advantages:

► Passive PoE Splitter + Passive PoE Injector

► Easy to install PoE Application for AP, CPE, IPCam, IP Phone

► Use the Power Supply from Powered Device

►Accept up to 57V Voltage Inpu

Overview

LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive

injector. It provides the most convenient and cost effective way for you to make PoE application,

you do not worry about how to find power outlet when using AP or IPCam. It uses the power adapter

that comes with your network device. There is no need for special PoE power adapter.

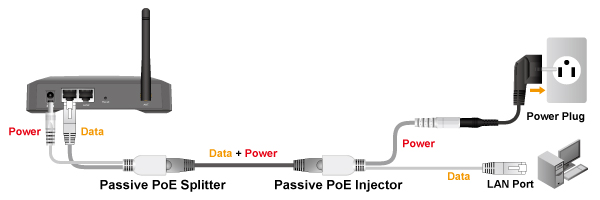

Application

Passive PoE Kit ( Passive PoE Splitter + Passive PoE Injector )

Technical Indexes

Interface	Data pin: 1,2,3,6
Interface	Power pin: 4, 5, 7, 8 (12~57V)
Case of material	PVC
Network cable	T IA/EIA 568 Cat. 5
Ethernet data rate	10/100 Mbps
Ethernet cable connector	RJ-45
Operating Temperature	0°C - 40°C (32°F - 104°F)
Storage temperature	-40°C - 70°C (-40°F - 158°F)
Operating Humidity	10% ~ 80% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)
Product Weight (g)	55g
Dimensions	210 x 19 x 19 mm
( L x W x H (mm) )	210 x 19 x 19 mm

Odering Information

Item	Description

LNK-POE-2P	Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector
