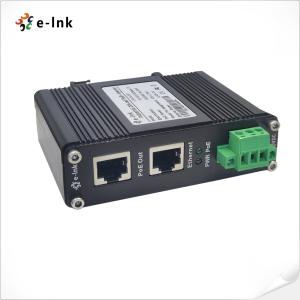

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Product Categories

E-link China Technology Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 80320VDC Power Input Industrial Gigabit PoE Injector
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : The LNK-INJ832

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Injector Adapter Standard Export Package

Key Word : PoE Injector Adapter

Input Power : 80~320VDC (Terminal Block)

Weight : 0.25Kg

Dimensions (WxDxH） : 95 x 70 x 30 mm

Operating Temperature : -40°C to 80°C

Mounting Options : DIN-Rail / Wall-mount

Contact Now

PoE Injector Adapter Advantages

► 80~320VDC wide-range input voltage

► Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN

► IEEE 802.3af/at compliant, supports a full 30 watt output

► Provides slim size with IP40 metal mechanism

► Support DIN-Rail & Wall-mount installation.

Technical Indexes

Electrical and Mechanical
Input Power:	80~320VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status

Overview

The LNK-INJ832 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE

device such as camera and access point with a non PoE LAN switch within the distance of 100m.

80~320VDC Power Input Industrial Gigabit PoE+ Injector

Ordering Information

Model	Description
LNK-INJ832	80~320VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately

80~320VDC Power Input Industrial Gigabit PoE+ Injector Images
